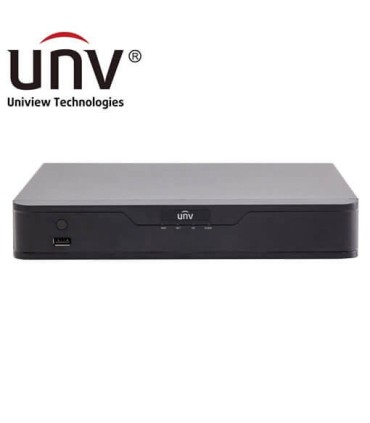

NVR301-04S - Uniview 4 canaux Network Video Recorder
Compression: Ultra 265 / H.265 / H.264
Compatible avec le protocole ONVIF
Prise en charge HDMI 1 voie, VGA 1 voie, HDMI jusqu'à 4K (3840x2160)
Sortie HDMI et VGA simultanée
Résolution d'enregistrement jusqu'à 8 mégapixels
Capacité pour 1 disque dur jusqu'à 10 To
Technologie ANR
Prise en charge de la mise à niveau du cloud
65,00 €
TTC
LIVRÉ EN : 2 à 4 jours
Référence:
NVR301-04S
Marque:
Ajouter à la comparaison0
Ajouter à la liste de souhaits
CARACTÉRISTIQUES
| NVR301-04S | NVR301-08S | |
| Video/Audio Input | ||
| IP Video Input | 4-ch | 8-ch |
| Network | ||
| Incoming bandwidth | 40Mbps | 48Mbps |
| Outgoing bandwidth | 48Mbps | 48Mbps |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
|
| Audio Output | 1-ch, RCA | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Synchronous Playback | 4-ch | 8-ch |
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 |
| Decoding | ||
| Decoding format | Ultra 265, H.265, H.264 | |
| Live view/ Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30 | |
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | up to 10TB for each disk | |
| External Interface | ||
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel：1 x USB2.0, Front panel：1 x USB2.0 | |
| General | ||
| Power Supply | 12V DC Power Consumption: ≤ 5 W( without HDD ) |
|
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 260.0mm × 240.2mm ×43.6mm (10.2"× 9.5"×1.7") | |
| Weight ( without HDD ) | ≤ 1 Kg (2.2 lb ) | |
