- 16 canaux BNC + 8 canaux IP supplémentaires
- Les 24 canaux peuvent être utilisés pour les caméras IP
- Résolution maximale 5 MP
- Protocoles pris en charge : Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
- Accès mobile : iPhone, iPad, Android
- Prend en charge un disque dur Sata jusqu'à 16 To (non inclus)
- Moniteur spécifique pour la vidéosurveillance
- Format 16:9
- Entrées : 1xHDMI, 1xVGA
- 1 sortie audio
- Montage VESA 75x75 mm

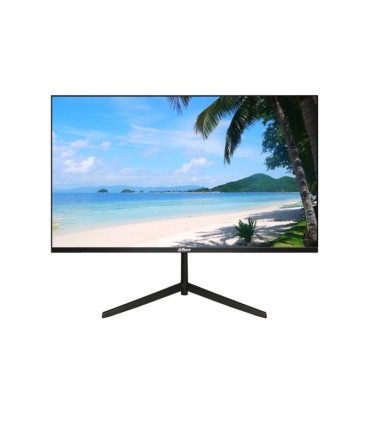

Model |
DHI-LM22-B200 |
||
Display |
|||
Screen Size |
21.45" |
||
Aspect Ratio |
16:9 |
||
Resolution |
1920×1080 (FHD) |
||
Backlight |
LED |
||
Brightness/Luminance |
250 cd/㎡ |
||
Contrast |
3000:1 |
||
Display Color |
16.7M(8bit) |
||
Viewing Angle(H/V) |
178°(H)/178°(V) |
||
Response time(typ.) |
6.5ms |
||
Refresh Rate |
75Hz |
||
Signals |
|||
Input |
VGA×1, HDMI×1 |
||
Output |
Audio Out x1 |
||
General |
|||
Power Supply |
DC 12V |
||
Consumption (Standard) |
24W |
||
Consumption (Standby) |
≤0.5W |
||
Net Weight |
2.5kg (5.5lb) |
||
Gross Weight |
3.5kg (7.7lb) |
||
Bezel Width |
3.1mm(R/L) 12.5mm(B) |
||
Wall Mount |
75×75mm (3.0"×3.0") |
||
Dimension without standard (W×H×D) |
492.3x280.9x41.8mm (19.4“x11.1”x1.6”) |
||
Package(W×H×D) |
572x390x106mm (22.5“x15.4”x4.2“) |
||
Work Environment |
Temperature |
0℃~40℃ (32°F~104°F) |
|
Humidity |
10%~85% |
||
Accessory |
|||
Standard |
HDMI cable, power cable, base |
||
Optional |
Gas spring desk bracket |
||
Certifications |
|||
Certifications |
CE/FCC |
