- 16 canaux BNC + 8 canaux IP supplémentaires
- Les 24 canaux peuvent être utilisés pour les caméras IP
- Résolution maximale 5 MP
- Protocoles pris en charge : Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
- Accès mobile : iPhone, iPad, Android
- Prend en charge un disque dur Sata jusqu'à 16 To (non inclus)

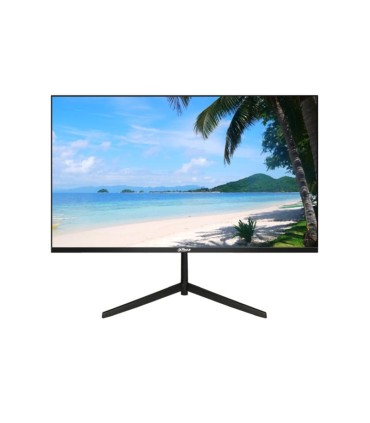

- Moniteur spécifique pour la vidéosurveillance
- Format 16:9
- Entrées : 1xHDMI, 1xVGA
- 1 sortie audio
- Montage VESA 75x75 mm
DAHUA |
||
Model |
DHI-LM24-B200 |
|
Display |
||
Screen Size |
23.8" |
|
Aspect Ratio |
16:9 |
|
Resolution |
1920×1080 (FHD) |
|
Backlight |
LED |
|
Brightness/Luminance |
250 cd/㎡ |
|
Contrast |
4000:1 |
|
Display Color |
16.7M(8bit) |
|
Viewing Angle(H/V) |
178°(H)/178°(V) |
|
Response time(typ.) |
6.5ms |
|
Refresh Rate |
60Hz |
|
Signals |
||
Input |
VGA×1, HDMI×1 |
|
Output |
Audio Out x1 |
|
General |
||
Power Supply |
AC100~240V, 50/60 Hz |
|
Consumption (Standard) |
25W |
|
Consumption (Standby) |
≤0.5W |
|
Type |
Internal |
|
Net Weight |
3kg (6.6lb) |
|
Gross Weight |
4kg (8.8lb) |
|
Bezel Width |
3.8mm(U), 3.7mm(R/L), 11mm(B) |
|
Wall Mount |
75×75mm (3.0"×3.0") |
|
Dimension without standard (W×H×D) |
541x317x42mm (21.3“x12.5”x1.7”) |
|
Package(W×H×D) |
613x441x112mm (24.1“x17.4”x4.4“) |
|
Work Environment |
Temperature |
0℃~40℃ (32°F~104°F) |
Humidity |
10%~85% |
|
Accessory |
||
Standard |
HDMI cable, power cable, base |
|
Optional |
Gas spring desk bracket |
|
Certifications |
||
Certifications |
CE/FCC |
