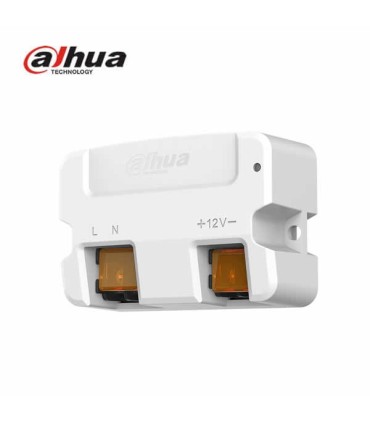

PFM320D-015 - Alimentador Dahua DC12V1.5A
PFM320D-015
Instalación fácil
Indicador de operación led
Resiste temperaturas -30 ℃ ~ + 70 ℃ con 100% de eficiencia
Protección contra sobretensiones
7,20 €
(impuestos inc.)
ENTREGA EN: 24 a 48 Horas
Referencia:
PFM320D-015
Marca:
Añadir para comparar0
A lista de deseos
| Model | DH-PFM320D-015 |
| Electrical Specification | |
| Rated input | AC100~240V, 50/60Hz, 0.6A |
| Output voltage | DC12V (+7%, -3%) |
| Output current | Max. 1.5A (+70℃) |
| Protection/Environmental | |
| Protection | Surge protection, over temperature protection, over current, voltage load protection |
| ESD: EN61000-4-2 +/-6kV Contact; +/-8kV Air |
|
| Surge: EN61000-4-5 Combination Wave: Common Mode ±4KV(12 ohms) Differential Mode ±2kV(2 ohms) |
|
| Working temperature | -30℃~+70℃(-22℉~+158℉) |
| Working humidity | 5%~95% RH |
| Physical Properties | |
| Weight | 95g(0.21lb) |
| Dimension(LxWxH) | 77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“) |
| Installation | Plane installation, can be installed in junction boxes and wall mount brackets |
| Color | White |
| Input plug | 2-pin plug(L/N) |
| Output plug | 2-pin plug(+12V-) |
| Safety Standards | |
| Certification | CE, FCC |
