868MHz Jeweller Wireless
Communication range to 900 m
Power supply 230 V AC 50 Hz
No need for neutral wire

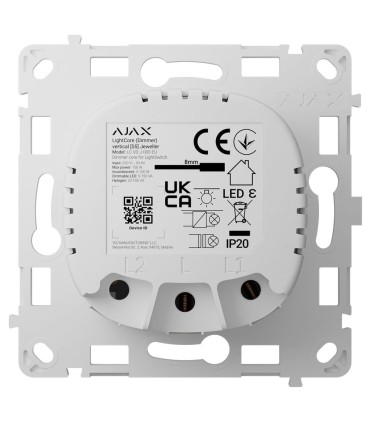

Ajax - LightSwitch LightCore (Dimmer) Vertical
| Brand | Ajax - LightSwitch LightCore (Dimmer) Vertical |
| Function | Relay for vertically dimmable intelligent light switch |
| Lamp compatibility | Dimmable incandescent bulb 8-150 VA Dimmable LED 8-150 VA Dimmable halogen bulb 20-150 VA Lower power devices: Add BYPASS-DIMMER |
| Brightness | Memory of previous brightness level with anti-flickering |
| Transmission distance | Up to 900 m in open space |
| Frequency | 868 MHz Jeweller |
| Power supply input | AC 230 V / 50 Hz |
| Average consumption | 250 mW |
| Switched device power | 8 VA to 150 VA |
| Current and temperature protection | 0.75 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, Hub Hybrid |
| Use | Interior |
| Temp. operation | -10º C ~ 40º C |
| Dimensions | 74.2 (H) x 72.6 (W) x 31.7 (D) mm |
| Weight | 45 g |
| Terminals | 1 terminal for power phase cable and 1 terminal for power cable of a lighting device or other load (without neutral cable) |
Prevents light flicker
Compatible with LIGHTCORE-DIMMER and ALIGHTCORE-DIMMER-VERT
Power supply 230 V AC 50 Hz
Ajax - LightSwitch Bypass (Dimmer)
