868MHz Jeweller Wireless
Communication range to 1100 m
Power supply 230 V AC 50 Hz
No need for neutral wire

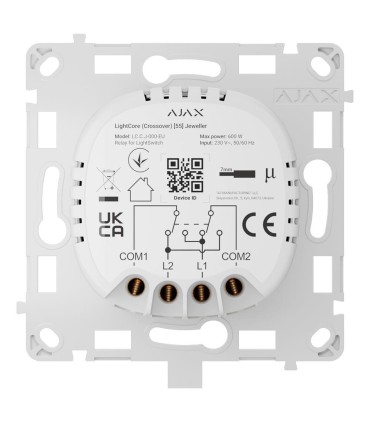

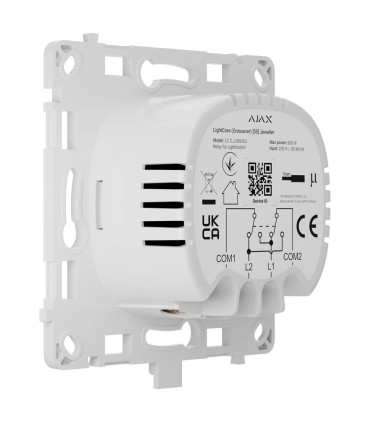

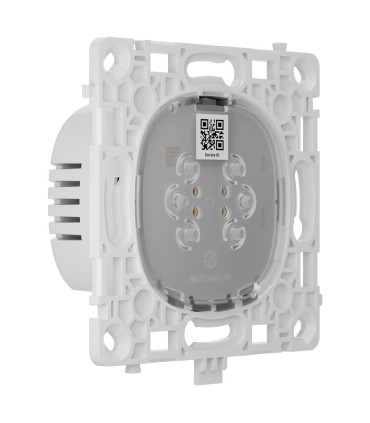

Ajax - LightSwitch LightCore (Crossover)
| Brand | Ajax - LightSwitch LightCore (Crossover) |
| Function | Relay for intelligent dipped beam light switch |
| Transmission distance | Up to 1100 m in open space |
| Frequency | 868 MHz Jeweller |
| Power supply input | AC 230 V / 50 Hz |
| Average consumption | 200 mW |
| Switched device power | from 5W to 600 W |
| Low power devices (<5W)) | Install kit condenser |
| Current and temperature protection | 2.6 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid |
| Use | Interior |
| Temp. operation | -10º C ~ 40º C |
| Dimensions | 77.5 (H) x 72.6 (W) x 31.7 (D) mm |
| Weight | 60 g |
| Terminals | 2 phase terminals and 2 common terminals (without neutral wire) |
