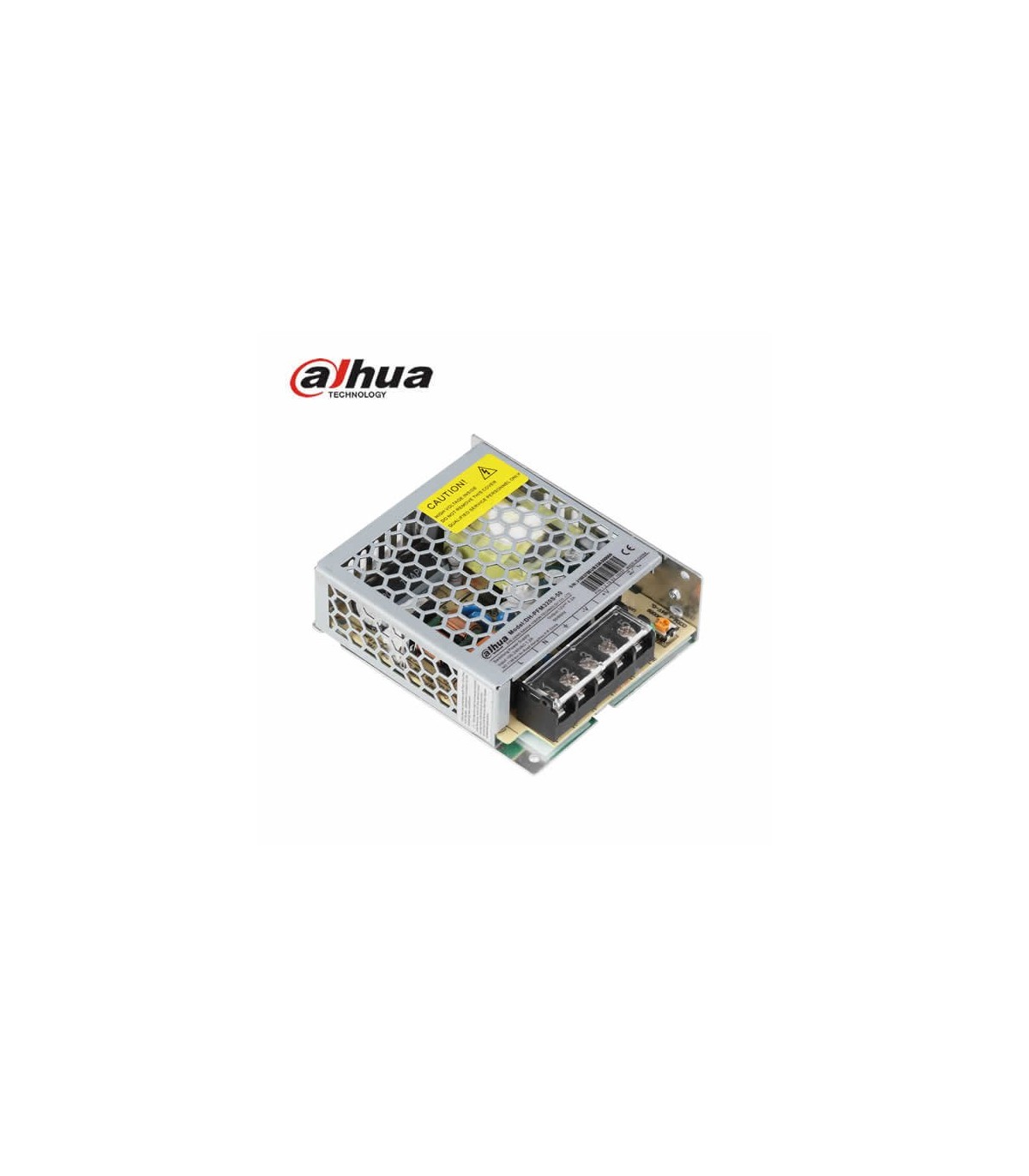

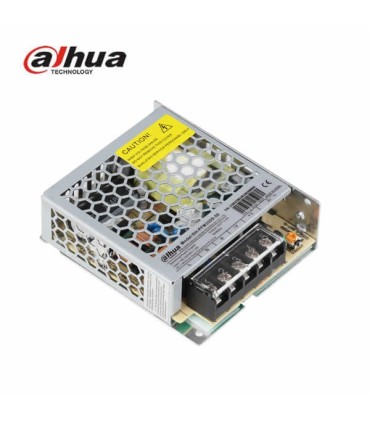

PFM320S-50
Wide range voltage input of 90 ~ 264Vac, meets the requirements in different parts for fluctuation of the electrical network;
Power supply to several chambers simultaneously
Voltage regulator (± 10%) for different load requirements
High quality and reliability

Read moreShow less
€14.00 (tax incl.)
Out-of-Stock
QR code
Share
Notify me when available
Reference:
PFM320S-50
Brand:
Dahua Technology
Add to compare0
Add to wishlist
Description

Technical Specification

Model

DH-PFM320S-50

Electrical Specification

Input Voltage Range

90~264Vac

Efficiency

85.0% (@230Vac)

Output Voltage

12Vdc (terminal output)

Out Voltage Tolerance

±5%

Adjustable Range for DC Voltage

±10% (10.8Vdc~13.2Vdc)

Rated Output Current

4.2A

Output Power

50W

No Load Power Consumption

<0.3W

Protection/Environmental

Surge Protected

Line to ground: ±2000V

Line to line: ±1000V

ESD

Contact discharge: ±6000V

Air discharge: ±8000V

Working Temperature

-20℃~+50℃(60% output at +70℃)

-4℉~+122℉(60% output at +158℉)

Working Humidity

<90% RH

Physical Properties

Weight

0.2kg(0.44lb)

Dimension(LxWxH)

99mmx82mmx30mm (3.9”x3.23“x1.18”)

Installation

Wall mount/Ceiling mount

Color

Metallic silver

Safety Standards

Certification

CE, FCC

Read moreShow less
