Nivian Smart Alarm Kit
Touchpad and RFID reader
WiFi and GSM communication
Wireless 868 MHz & 433 MHz
Up to 60 wireless devices
Compatible with the Tuya platform
Alarm with video camera via internet - Oplink
OpLink C1S3
New wireless alarm system with connection through internet.
This system is permanently connected to the internet via Oplink server that sends notifications to users on alarm to immediately can make the video check.
If the notification via internet is not possible, the server automatically performs a free phone call to predefined users.
See the various videos about this alarm system.

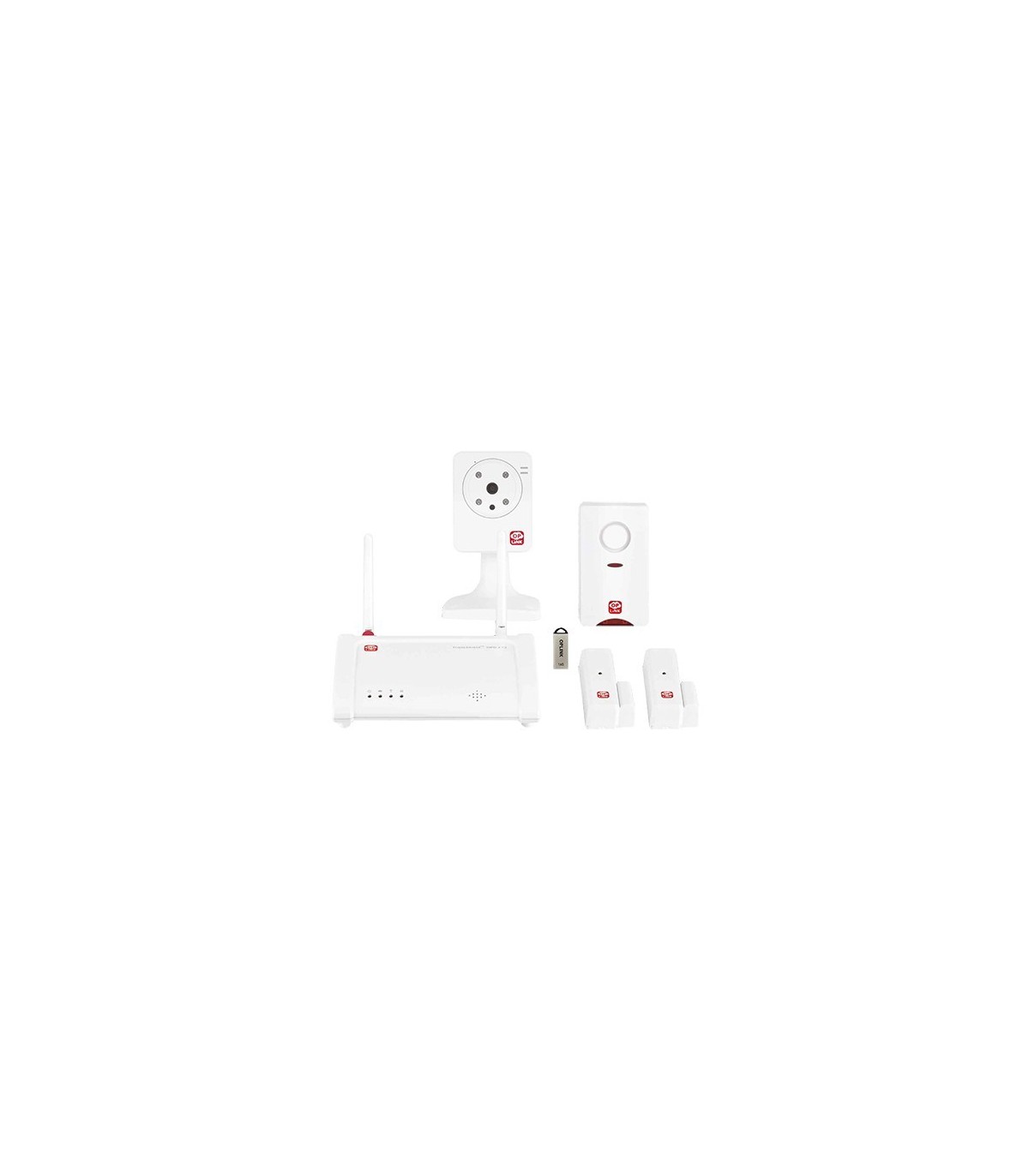

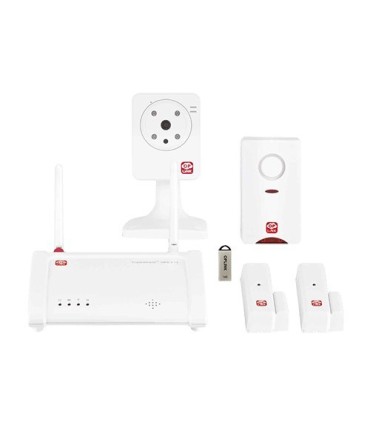

This Set includes:
1 Control Panel
1 Wireless Camera
2 door detectors or wireless window
1 indoor siren
1 Pen 16GB
1 RJ45 cable
3 Stickers disuassores
3 Power Supplies
User manuals
The system is super simple to install and virtually Plug and Play.A Oplink offers several videos on this system.
Technical Specifications:
Control panel:
Connection type: WiFi IEEE 802.11b / g
Communication with accessories: 433Mhz
Power supply: DC 5V 2000 mA (included)
Video storage: 16 GB USB pendrive (included)
Temp. Operating: -10 ° C ~ 55 ° C
Dimensions: 160x120x6 cm
Camara:
Communication with the panel: WiFi IEEE 802.11b / g
Video compression type: MJPEG
Sensor: 1/4 CMOS
Resolution: VGA (640x480)
Lens: 3.6 mm (66)
Minimum illumination: 0 Lux / 4 IR LEDs reach 10 m
Physical connection: RJ-45 10/100 BaseT
Audio: Integrated Microphone
Motion detection: Virtual by video sensor
Power supply: DC 5V 1000 mA (included)
Dimensions: 95x75x26 cm
Siren:
Sound power: 110dB
Led strobe
Transmission distance: 15-20m
Transmission frequency: 433 backup Mhz
Backup battery: AAA 3x1,5V
Power: DC 5 V 500 mA (included)
