- 16 BNC channels + 8 extra IP channels
- All 24 channels can be used for IP cameras
- Maximum resolution 5 MP
- Supported protocols:Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
- Mobile Access: iPhone, iPad, Android
- Supports a Sata HDD up to 16TB (Not included)
- Designed for video surveillance 24/7
- FHD Resolution 1920x1080 | Format 16:9
- Inputs: 1xHDMI, 1xVGA, 1xUSB
- VESA 400x200 | Integrated loudspeakers
- Remote control
- Low power consumption

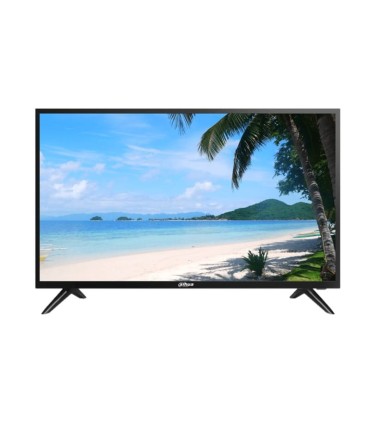

DAHUA |
||
Model |
DHI-LM32-F200 |
|
Display |
||
Screen Size |
31.5" |
|
Aspect Ratio |
16:9 |
|
Resolution |
1920×1080 (FHD) |
|
Backlight |
LED |
|
Brightness/Luminance |
240 cd/㎡ |
|
Contrast |
4000:1 |
|
Display Color |
16.7M(8bit) |
|
Viewing Angle(H/V) |
178°(H)/178°(V) |
|
Response time |
8.5ms |
|
Refresh Rate |
60Hz |
|
Signals |
||
Input |
VGA(D-Sub)×1, HDMI×1 , USB×1 |
|
Output |
Speaker |
4W×2 |
General |
||
Power Supply |
AC100~240V (+/-10%), 50/60 Hz |
|
Consumption (Standard) |
55W |
|
Consumption (Standby) |
≤0.5W |
|
Type |
Internal |
|
Net Weight |
3.9kg (8.6lb) |
|
Gross Weight |
5.1kg (11.2lb) |
|
Bezel Width |
13.9mm (U/R/L), 20.5mm (B) |
|
Wall Mount |
75×75mm (3.0"×3.0") |
|
Dimension without standard (W×H×D) |
731.4×432.6×67.5mm (28.8"×17"×2.7") |
|
Package(W×H×D) |
797×483×108mm (31.4"×19.0"×4.3") |
|
Work Environment |
Temperature |
0℃~40℃ (32°F~104°F) |
Humidity |
10%~85% |
|
Accessory |
||
Standard |
HDMI cable, power cable, remote control, pedestal |
|
Optional |
Hanging bracket |
|
Certifications |
||
Certifications |
CE/FCC |
