- 16 BNC channels + 8 extra IP channels
- All 24 channels can be used for IP cameras
- Maximum resolution 5 MP
- Supported protocols:Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
- Mobile Access: iPhone, iPad, Android
- Supports a Sata HDD up to 16TB (Not included)
- Designed for video surveillance 24/7
- FHD Resolution 1920x1080 | Format 16:9
- Inputs: 1xHDMI, 1xVGA, 1xUSB
- VESA 400x200 | Integrated loudspeakers
- Remote control
- Low power consumption

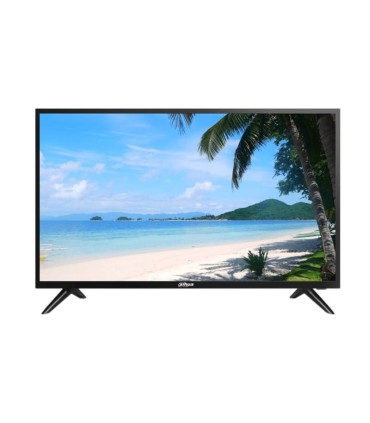

DAHUA |
||
Model |
DHI-LM43-F200 |
|
Display |
||
Screen Size |
43" |
|
Aspect Ratio |
16:9 |
|
Resolution |
1920×1080 (FHD) |
|
Backlight |
LED |
|
Brightness/Luminance |
330 cd/㎡ |
|
Contrast |
1200:1 |
|
Display Color |
16.7M(8bit) |
|
Viewing Angle(H/V) |
178°(H)/178°(V) |
|
Response time |
8ms |
|
Refresh Rate |
60Hz |
|
Signals |
||
Input |
VGA(D-Sub)×1, HDMI×1 , USB×1 |
|
Output |
Speaker |
4W×2 |
General |
||
Power Supply |
AC100~240V (+/-10%), 50/60 Hz |
|
Consumption (Standard) |
75W |
|
Consumption (Standby) |
≤0.5W |
|
Type |
Internal |
|
Net Weight |
7.4kg (16.3lb) |
|
Gross Weight |
9.5kg (20.94lb) |
|
Bezel Width |
12.7mm (U/R/L), 20.1mm (B) |
|
Wall Mount |
400×200mm (15.8"×7.9") |
|
Dimension without standard (W×H×D) |
968.7×564.7×72.9mm (38.1"×22.2"×2.9") |
|
Package(W×H×D) |
1079×652×129mm (42.5"×25.7"×5.1") |
|
Work Environment |
Temperature |
0℃~40℃ (32°F~104°F) |
Humidity |
20%~85% |
|
Accessory |
||
Standard |
HDMI cable, power cable, remote control, pedestal |
|
Optional |
Hanging bracket |
|
Certifications |
||
Certifications |
CE/FCC |
