- 16 BNC channels + 8 extra IP channels
- All 24 channels can be used for IP cameras
- Maximum resolution 5 MP
- Supported protocols:Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
- Mobile Access: iPhone, iPad, Android
- Supports a Sata HDD up to 16TB (Not included)
- Sleek design with ultra-thin frame
- Resolution 4K (3840x2160)
- Format 16:9 | Blue Light Filter
- Inputs: 2xHDMI, 1xDP
- Outputs: 1xUSB
- Integrated speakers

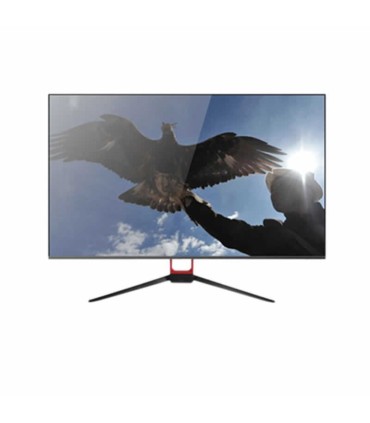

DAHUA |
|||
Model |
DHI-LM28-F400 |
||
Display |
|||
Screen Size |
28" |
||
Aspect Ratio |
16:9 |
||
Resolution |
3840×2160 (UHD) |
||
Backlight |
LED |
||
Brightness/Luminance |
300 cd/㎡ |
||
Contrast |
1000:1 |
||
Display Color |
1.073B |
||
Viewing Angle(H/V) |
178°(H)/178°(V) |
||
Response time(typ.) |
5ms |
||
Refresh Rate |
60Hz |
||
Signals |
|||
Input |
DP 1.2 ×1, HDMI 2.0 ×2, |
||
Output |
USB x1 (for charging) |
||
Speaker |
2W x2 |
||
General |
|||
Power Supply |
AC 100-240V |
||
Freesync |
Yes |
||
Tilt |
-5°~15° |
||
Consumption (Standard) |
40W |
||
Type |
Internal |
||
Net Weight |
7kg |
||
Gross Weight |
8.8kg |
||
Dimension without standard (W×H×D) |
637.88x368.53x57.36mm |
||
Work Environment |
Temperature |
0℃~40℃ (32°F~104°F) |
|
Humidity |
10%~85% |
||
Accessory |
||
Standard |
HDMI cable, Power cable, Pedestal |
|
Certifications |
||
Certifications |
CE/FCC |
