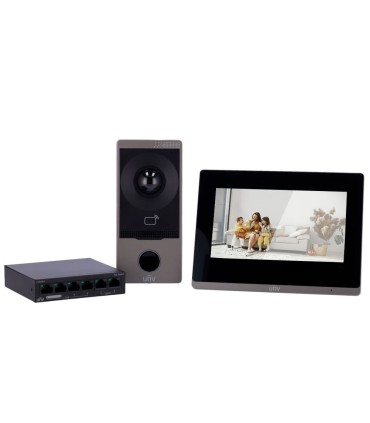

Uniview IP and WIFI Video Door Phone Kit
- Video intercom kit
- Tecnología IP & WiFi
- Includes board and monitor
- MF Reader | PoE
- Mobile App P2P (activation from monitor)
- Surface-mounted IP65 and IK08
€249.00
(tax incl.)
DELIVERED IN: 2 to 5 days depending on destination country
Reference:
UV-KIT/201S/372S/NSW2020
Brand:
Add to compare0
Add to wishlist

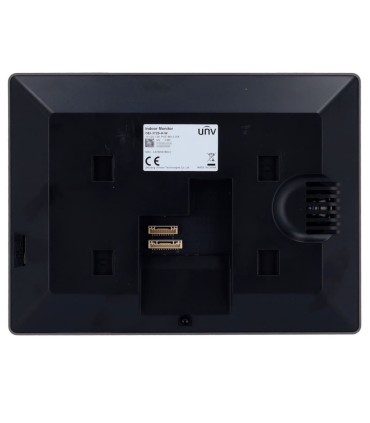

UV-OEI-372S-H-W |
|
| Brand | Uniview |
| Model | OEI-372S-H-W |
| Operating system | Linux |
| Screen type | 7" color touch-screen TFT |
| Screen resolution | 1024 x 600 |
| Inputs | 8 x configurable alarm inputs, 1 x RS485 |
| Outputs | 2 x relay outputs |
| Audio | Two-way audio with integrated microphone and loudspeaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 32 GB) |
| Connection | Ethernet 10/100 BaseT / WiFi 802.11 b/g/n |
| Remote access | Web browser UNV-Link mobile app |
| Power | DC 12 V / 1 A max. / IEEE802.3af PoE |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 143 (H) x 193 (W) x 25 (D) mm |
| Weight | 360 g |

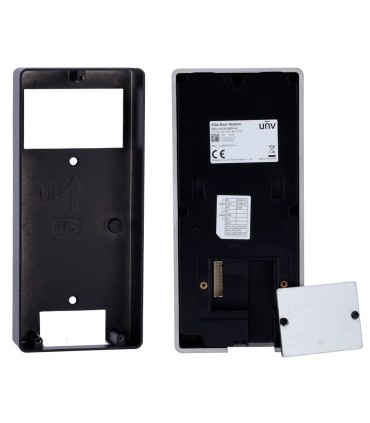

UV-OEU-201S-HMK-W |
|
| Brand | Uniview |
| Model | OEU-201S-HMK-W |
| Operating system | Linux |
| Image sensor | 2 Mpx CMOS wide-angle IR |
| Image Functions | BLC / WDR / DNR |
| Viewing angle | H: 124º, V: 68º, V: 147º |
| Audio | Bidirectional audio with microphone and speaker |
| Access control | Door opening with MF card 13.56 MHz Up to 2.000 users and 10.000 cards |
| Keypad | Mechanical call button |
| Outputs | 2 x relay for lock, 1 x RS485 |
| Inputs | 4 x auxiliary inputs (output button, feedback, door sensor), 1 x tamper |
| Memory | MicroSD card slot (up to 32 GB) |
| Remote access | Web browser UNV-Link mobile application |
| Network interface | Ethernet 10/100 BaseT / WiFi |
| Power | DC 12 V / 1000 mA máx. / IEEE802.3af PoE |
| Degree of protection | Suitable for exterior IP65 Anti-vandal IK08 |
| Material | Aluminium alloy |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 171 (H) x 79 (W) x 34 (D) mm |
| Weight | 270 g |

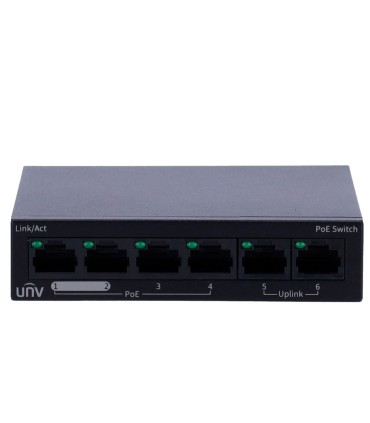

UV-NSW2020-6T-POE-IN |
|
| Brand | Uniview |
| Device | Unmanaged PoE Switch |
| Interface | 6 Ports RJ45 10/100Mbps |
| IEEE standards compliance 802.3 | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| PoE characteristics | 4 802.3af/at PoE+ Ports Up to 30W per port Total PoE power of 60W |
| Functions | VLAN mode Default mode Extended Mode |
| Packet Buffer | 448k |
| Bandwidth | 1,2Gbps |
| Packet Forwarding Rate | 0,90Mbps |
| MAC Table | 1K |
| Supported Technologies | Auto-Negotiation / Auto MDI/MDIX mode |
| Power | 48/51V DC, adapter-powered (AC100-240V, 50/60Hz) |
| Maximum Consumption | < 60W |
| Operating temperature | 0º C ~ 40º C |
| Dimensions | 107 x 101 x 25 mm |
| Weight | 0,19 Kg |
