PSTN GSM GPRS and WIFI Secuplace Alarm Kit from Electronics Line

ACCESSORIES

CommPact

The Commpact intrusion system is named for its streamlined, space-saving design, while offering a professional, highly reliable system at a competitive price.

Commpact’s connectivity to the cloud-based ELAS server enables it to be controlled remotely by EL’s smartphone app (also available via web browser) that enables users to arm/disarm the system remotely as well as receive email/ SMS/ voice notifications and view and store a history of events.

Commpact supports a wide range of security and safety accessories including elderly care and detectors against smoke, flood and poisonous gases.

The simple and quick wireless installation and remote programming of the Commpact system add further to its appeal as a powerful, convenient system which allows users to enjoy a complete sense of control as well as peace of mind.

Technical Specifications

• Wireless RF technology
• 32 Wireless zones
• Supports up to 19 keyfobs
• PSTN/GSM/GPRS communication modules
• Event reporting –GPRS with GSM and PSTN backup (Voice or SMS SIA/CID)
• Email/SMS/voice event notifications to end users
• 100 mA programmable output for wired siren
• USB connector for local PC programming
• Remote programming, firmware updates and maintenance
• Incorporates FM technology for enhanced RF noise immunity
• Digital RSSI (Reception Signal Strength Indication)
• Robust anti-collision transmission
• 66 bits encryption with SecuriCode™ technology (hopping and rolling code)
• Single transceiver technology
• Two-stage transmitter for improved frequency stability
• Menu-driven programming for quick and easy installation
• Remote Firmware Upgrades via GPRS
• Advanced remote programming software
• Fast up/downloading via PSTN, GSM, GPRS or WIFI
• Upload status of all wireless devices
• Installer built-in utilities
• Real-time transmitter list and status, visible and audible signal strength meter
• GSM network coverage indication
• Smart walk test; transmitter test; wireless siren test; internal siren test; interface test
• Receiver quality measurement to evaluate signals in the same frequency

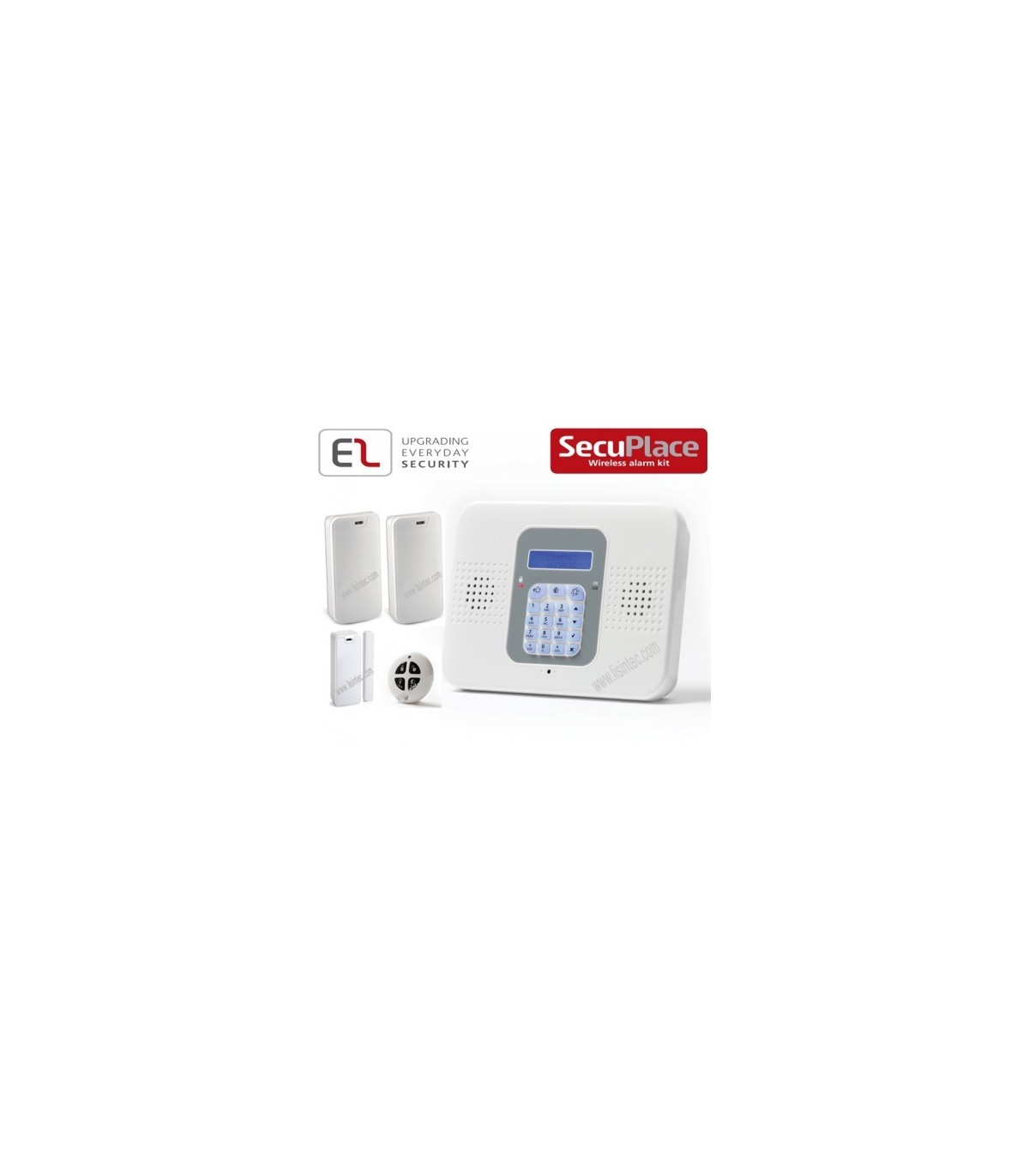

  Included in the pack:
  Panel COMMPACT PSTN/GSM/GPRS/WIFI
  2x PIR Sensor EL-5845PI
  1x Magnetic sensor EL-2801
  1x Remote control EL-2714
