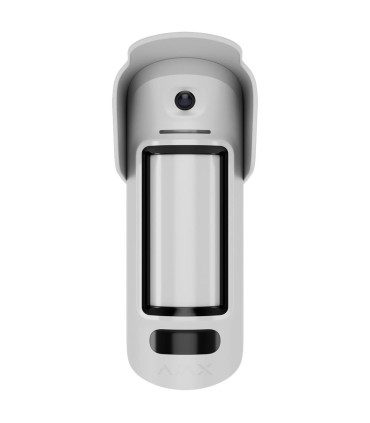

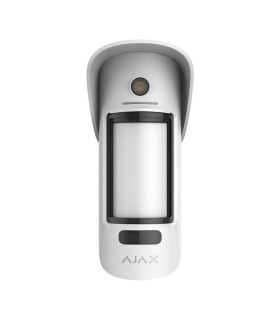

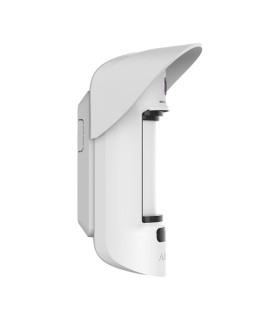

Outdoor photo detector with image request
Double technology: PIR and K-band microwave
Privacy manager / Anti-masking sensor
Up to 5 images per detection
Installation in height 2~4 m
Swivel stand included
| Brand | Ajax |
| Security Grade | Grade 2 |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1700 m in open space |
| Detection range | From 3 to 15 m / 85º / Installing 2~4 m |
| Microwave sensor | K-band (24 GHz) |
| Anti-masking | Available |
| Sensitivity | Adjustable. 3 levels (high, medium, low) |
| Privacy Manager | End-customer management of image request permissions |
| Image capture | By alarm / By intelligent scenario / By customer request |
| Image resolution | Up to 640 x 480 |
| Image | HDR technology improving detail accuracy in light and dark scenes |
| Number of images | Up to 5 images per detection |
| Infrared lighting | IR for night mode |
| Tamper-resistant opening | Available |
| Protection | Motion alert or detector re-orientation and support |
| LEDs indication | Alarm, tamper, signal |
| Compatibility | Hub 2, Hub 2 Plus, Hub Hybrid |
| Firmware Upgrade | Available. Remote OTA (Over-the-air) updates |
| Power | 6 batteries CR123A 3.0 V (approximate life time 3 years) |
| Optional power supply | 12~24 V with external power supply |
| Temp. operation | -25 ºC ~ 60 ºC |
| Degree of protection | IP55 |
| Dimensions | 224 (H) x 137 (W) x 98 (D) mm |
| Colour | White |
