1/2.7” 5 Megapixel CMOS
Compression H.265, H.264, MJPEG
20 fps @ 2592 × 1944, 50/60 fps @ 1080P (1920 × 1080)
WDR (120 dB), Day / Night (ICR), 3D DNR, AWB, AGC, BLC
2.8 mm fixed lens
1 alarm input and 1 output, 1 audio input and 1 audio output
IR range 50 m
MicroSD slot up to 256GB
IP67, IK10
Pro AI (Artificial Intelligence) series contains Face Detection, Perimeter Protection and People Counting functions.Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Meanwhile, the series features StarLight technology and smart IR technology. This series fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standard.
Main features

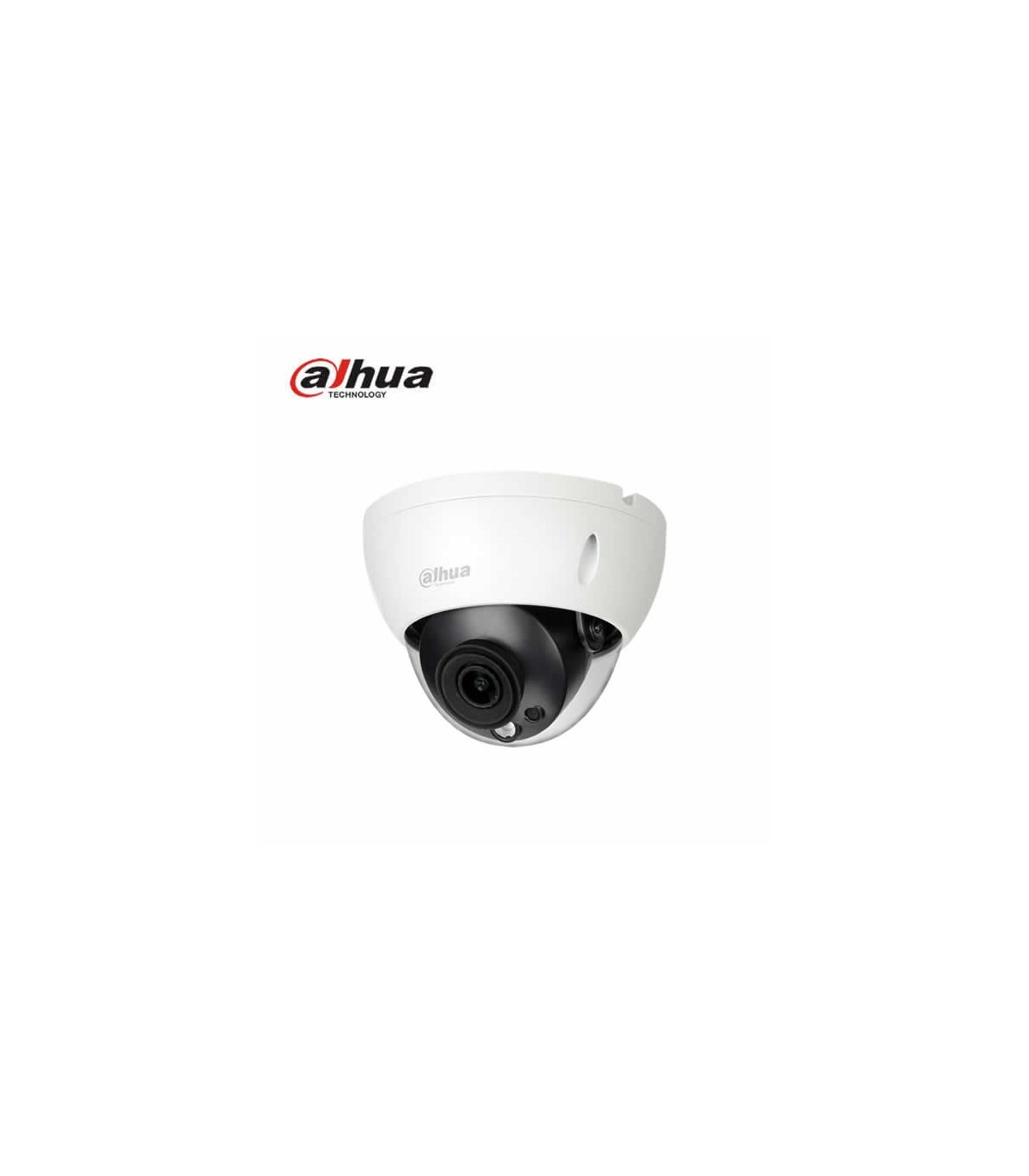

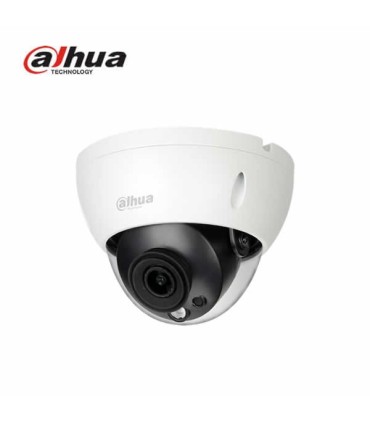

Pro AI series dome camera, with 50m Smart IR, anti-vandalism for outdoor
1/2.7" 5MP CMOS
Triple flow
H.265 + / H.265 / H.264 + / H.264 / MJPEG format
Resolution up to 5MP at 20Fps
ICR filter
0.005 lux F1.6.
2.8 mm fixed lens (102 °)
OSD, AWB, AGC, BLC, HLC, WDR 120dB, 3D-DNR, 4 ROI zones, mirror, video sensor and privacy masks
Face capture, perimeter protection and people counting
Intelligent detection (IVS)
Two-way audio
1 input / 1 alarm output
MicroSD Slot
Onvif, CGI, P2P
IP67, IK10
3AXIS
12V DC
PoE. ePoE.
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU
FCC: 47 CFR FCC Part 15, Subpart B
UL / CUL: UL60950-1 CAN / CSA C22.2 No.60950-1-07
Data sheet
Kit of 2 transceivers for 1 channel
Power and data transmission via coaxial cable
RG59: 400m at 100Mbps, 1km at 10Mbps
Compatible only with ePoE devices (ePoE Switch + ePoE IP Camera)
PFA152-E
Support for Dahua cameras installation on mast or Post
Made of electro-galvanized steel
For outdoor use
PFB220C
Ceiling bracket
Allows cables to pass through the interior
Compatibile dal supporto: PFA106 DH-DH-PFA117 di Dahua
Material: Aluminum
Can be used indoors or outdoors
DH-PFA106
Can be used in conjunction with DH-PFB305W, DH-PFB220C bracket
Material: Aluminum
Indoor or outdoor use
PFB203W
Wall bracket for Dome Dahua cameras
Compatible with several models of Dome Dahua cameras
Allows you to host connectors or transceivers
DH-PFA200W
Can be coupled with other Dahua installation or connection boxes
Material: Aluminum and SGCC
For outdoor use
Installation on walls
Connection box for Dome Dahua cameras
Material: Aluminum
For indoor or outdoor use
Installation on walls or ceilings
