- 16 BNC channels + 8 extra IP channels
- All 24 channels can be used for IP cameras
- Maximum resolution 5 MP
- Supported protocols:Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
- Mobile Access: iPhone, iPad, Android
- Supports a Sata HDD up to 16TB (Not included)

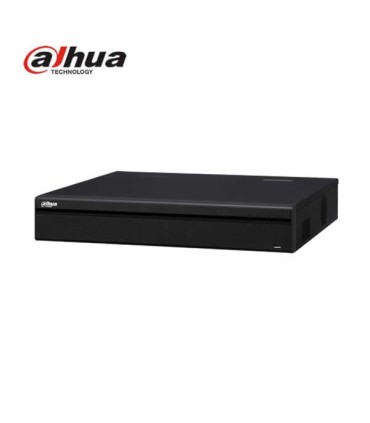

32-channel Pro Series Dahua Recorder
Smart H.265+/H.265 H264+/H264
320 Mbps bandwidth
Resolution up to 12MP for viewing and playback
Simultaneous HDMI and VGA video output
32-channel IP NVR for cameras up to 12MP
H.265 + / H.265 / H.264 + / H.264 / MJPEG
Two-way audio
4-ch @ 8MP (30fps), 16-ch @ 1080P (30fps)
12MP, 4K / 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P.
Bandwidth 320 Mbps
Counting people
Heat Map
Facial detection
Tripwire
Intrusion
Missing objects and abandoned objects
2x HDMI (4K) and 2x VGA (1080P) outputs
Multidisplay
16 inputs and two 6 alarm outputs
Capacity for 4 SATA III HDD up to 10TB each
1 eSata port
Gigabit RJ45 network interface
1 USB 2.0 + 2 USB 3.0, 1 RS232, 1 RS485
100V ~ 240V AC, 50 ~ 60 Hz
Certifications
CE: EN55022, EN55024, EN50130-4, EN60950-1
FCC: Part 15 Subpart B, ANSI C63.4-2014
UL: UL60950-1
Data sheet
- RESOLUTION
- 4K
- NUMBER OF CHANNELS
- 32 Ch
- AUDIO
- 1 IN + 2 OUT
- ALARMS
- 16 IN + 6 OUT
