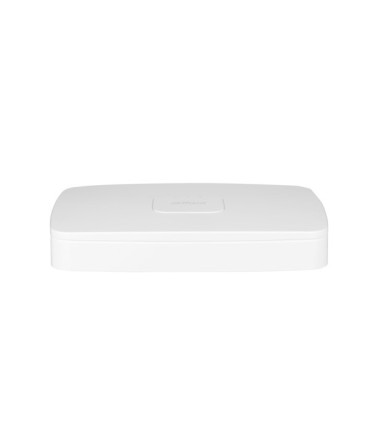

XVR5104C-I3 - 4 channel Dahua Hybrid Recorder

WizSense is a series of products powered by Artificial Intelligence (AI).
It recognizes humans and vehicles with high accuracy, allowing users to act quickly on defined targets.

· H.265+/H.265 Video Compression
· HDCVI/AHD/TVI/CVBS/IP
· Max 6 IP channels, each channel up to 6MP
. 64 Mbps
· Up to 1 channel (analog) - Perimeter Protection
· Up to 4 channels (analog) - SMD Plus
· Up to 1 channel (analog) - Facial Recognition

Facial recognition
Performance: 8 Faces
Strange Mode: Detects strange faces
AI Search: Up to 8 targets (face images at the same time)

Perimeter Protection
Performance: 1 channel
Object Classification: Human / Vehicle
AI Search: Search for the target (Human/Vehicle)

Video
Video Inputs: 8 Channels
Max Resolution: 5MP, 4MP, 1080p@25/30fps, 720p@25/30fps
IP Inputs: 4+2 Channels, up to 6MP
Audio Input/Output: 1/1, RCA
Video Outputs: 1 HDMI / 1 VGA

Network
Network Functions: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search
Users: 128
Interface: 1 RJ-45 Port (1000 MB)
ONVIF 16.12, CGI Conformant

Storage
Internal HDD: 1 SATA Port - Up to 10TB

Other data
USB: 2 Ports
RS485: 1
Power: DC 12V/2A
Operating Temperature: -10°C to +55°C
Dimensions: 260.0 mm × 237.9 mm × 47.6 mm
Weight: 1.37 Kg
