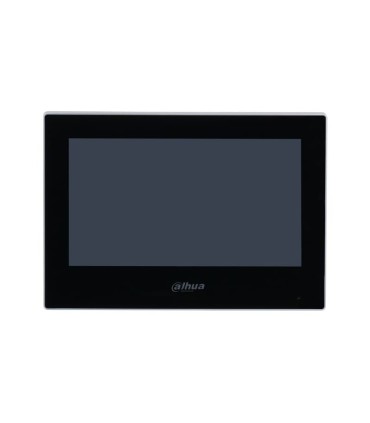

Dahua 7" Indoor SIP WIFI IP Two-Wire Monitor VTH2622G-W

System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Network Protocol

IPv4; FTP; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP; SIP

Basic

Screen Type

Capacitive touchscreen

Display

7" TFT

Screen Resolution

1024 × 600

Audio Compression

G.711a; G.711Mu; G.711u

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

2-channel

Audio Enhancement

Echo suppression

Audio Bit Rate

16 kHz; 16 bit

Function

Communication Mode

Digital 2-wire

Information Release

Receive and view text information released by the management center

Leave Videos

Yes (insert an SD card into the indoor monitor)

DND Mode

Do not disturb period can be set; Do not disturb mode

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Performance

Casing

PC + ABS

Port

RS-485

1

Alarm Input

6

Alarm Output

1

Power Output

1 (12 V/100 mA)

Door Bell

Yes (use any alarm input port)

Network

One 10/100 Mbps Ethernet

Alarm

SOS

Yes

General

Color

White

Power Supply

48 VDC 1.25 A

Installation

Surface mount

Certifications

CE; FCC

Accessory

Bracket and alarm ribbon cable (included)

Dimensions

189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00")

Operating Temperature

–10°C to +55°C (+14°F to 131°F)

Operating Humidity

10%–95% RH (non-condensing)

Operating Altitude

Beneath 3000 m (9842.52 ft)

Power Consumption

Standby ≤ 2 W; working ≤ 6 W

Net Weight

0.34 kg (0.74 lb)

Gross Weight

0.58 kg (1.27 lb)

Gross Weight

575 g (1.27 lb)
