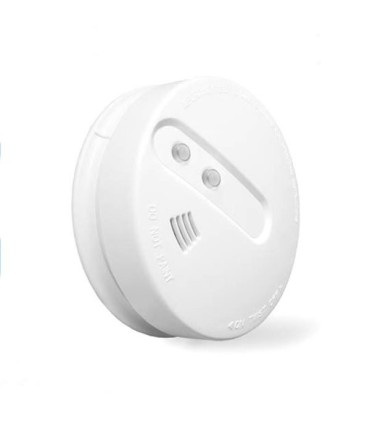

Smoke detector alarm wireless 433MHz

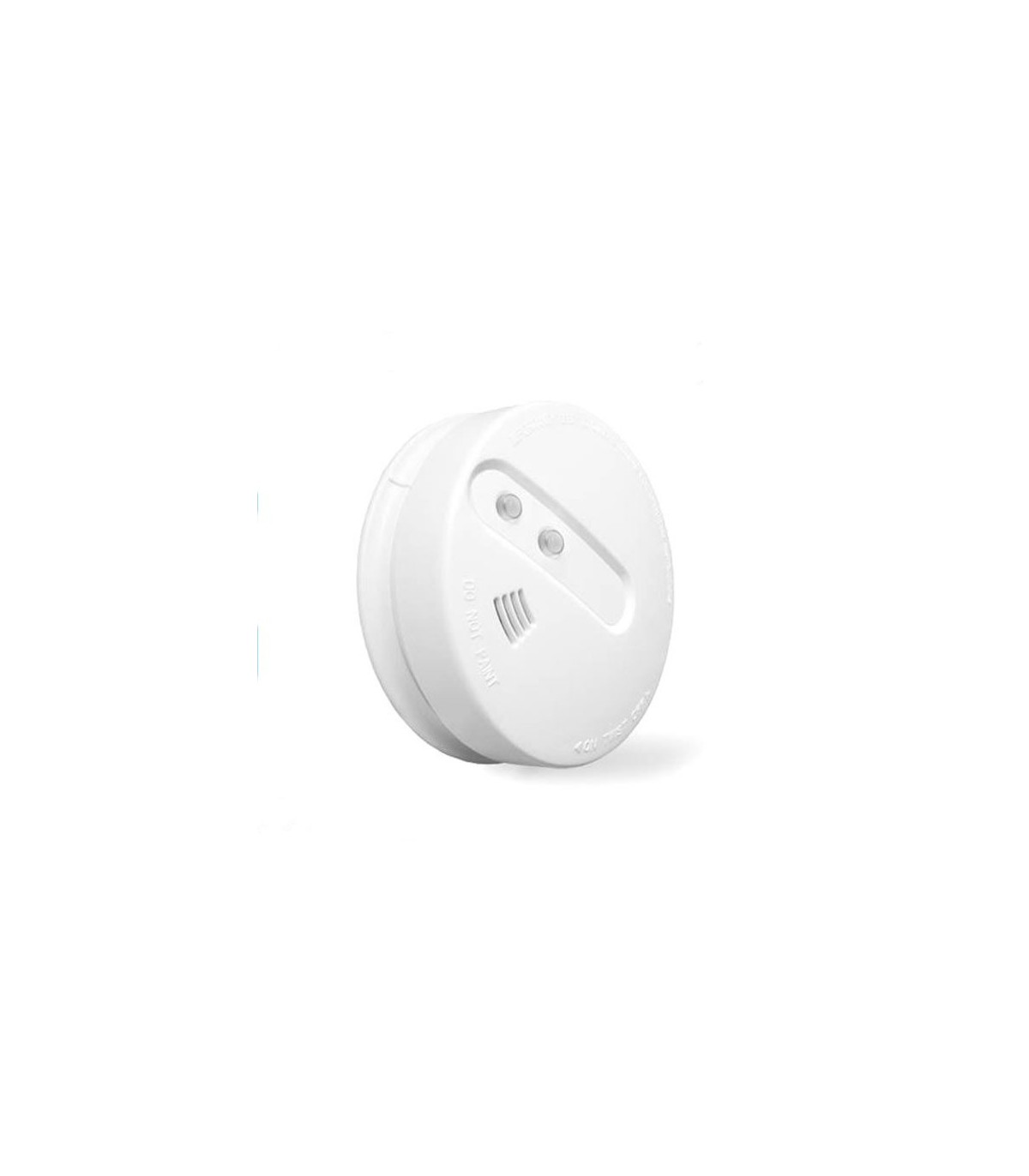

Wireless smoke detector PA-202R
This detector can function both as an independent unit, as connected via a wireless alarm system on the
freq. 433MHz. (Compatible with all our alarm systems)
Features:
Siren 85 db a 3 m
Test button
Power supply: Battery 6LR61 / 9V 6F22
Low battery warning in advance 250-300 horas
Freq. transmission. 433MHz
Consumption in static mode: ≤ 10μA
Consumption in alarm mode: ≤ 12mA
Size: Φ107X44mm
Color: White
certifications:
CE, EN14604, FCC and RoHS
Warranty: 2 years
|
Model NO. |
PA-201R |
PA-202R | ||
|
Operating voltage |
DC9-35V |
|||
|
Alarm temperature |
N/A |
N/A |
57°C |
57°C |
|
Static current |
20uA |
13mA(NC);4mA(NO) |
20uA |
13mA(NC);4mA(NO) |
|
Alarm current |
35mA@DC12V;83m@DC24V |
9mA(NC);19mA(NO) |
35mA@DC12V;83m@DC24V |
9mA(NC);19mA(NO) |
|
Alarm output |
Remote LED indicator |
Relay output |
Remote LED indicator |
Relay output |
|
Installation |
Ceiling mounted |
|||
|
Sensitivity |
2.06%ft±1.3%ft |
0.15dB/m(±0.03dB/M) |
||
|
Working environment |
-10°C~ 50°C,(≤95%RH No congelation) |
|||
|
Dimension |
Φ100*46mm |
