PIR detector range up to 4 m
Two-way audio with noise cancellation
IR night vision, range up to 6 m
Wi-Fi 2.4 GHz backed by Jeweller/Wings
White colour
| Brand | Ajax |
| Image sensor | CMOS |
| Maximum resolution | 4 Megapixel (2688×1520) |
| Main Stream rate | 4 Mpx (1 ~ 25 FPS) |
| Viewing Angle | H: 155° / V: 90° |
| IR range | 6 m |
| Image improvements | HDR |
| Artificial intelligence | Available. People, vehicles and pets |
| Audio | Built-in microphone Codec G722 |
| Video protocol | JetSparrow |
| Video storage | Ajax Cloud or NVR |
| Network Interface | Wi-Fi 2.4 GHz |
| Backup connection | Jeweller/Wings for events and image |
| Encryption | mTLS |
| Compression | H.264 |
| Firmware Upgrade | Available. Remote OTA (Over-the-air) updates |
| Integrated PIR detection field | 4 m / H: 120º / V: 100º |
| Sensitivity | Adjustable from App. 3 levels (low, medium and high) |

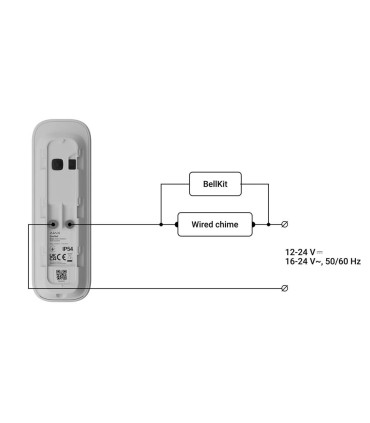

| Power | 12-24 V DC |
| Backup battery | Li-ion rechargeable 600 mAh Automatic heating for operation at low temperatures without reducing performance |
| Consumption | 10 W |
| Operating temperature | −25 °C ~ +60 °C |
| Operating Humidity | Up to 90% |
| Degree of protection | IP54 |
| Dimensions | 145 × 47 × 34 mm |
| Weight | 163 g |
| Colour | White |
| RAL code | RAL 9005 |
Ajax Alarm Panel
Grade 2 Certificate
Ethernet and GSM / GPRS communication
Wireless 868 MHz
Supports 100 wireless accessories
Integration of up to 25 IP cameras or DVRs
Compatible with PIR CAM detector available soon
Smartphone and web app
White color
