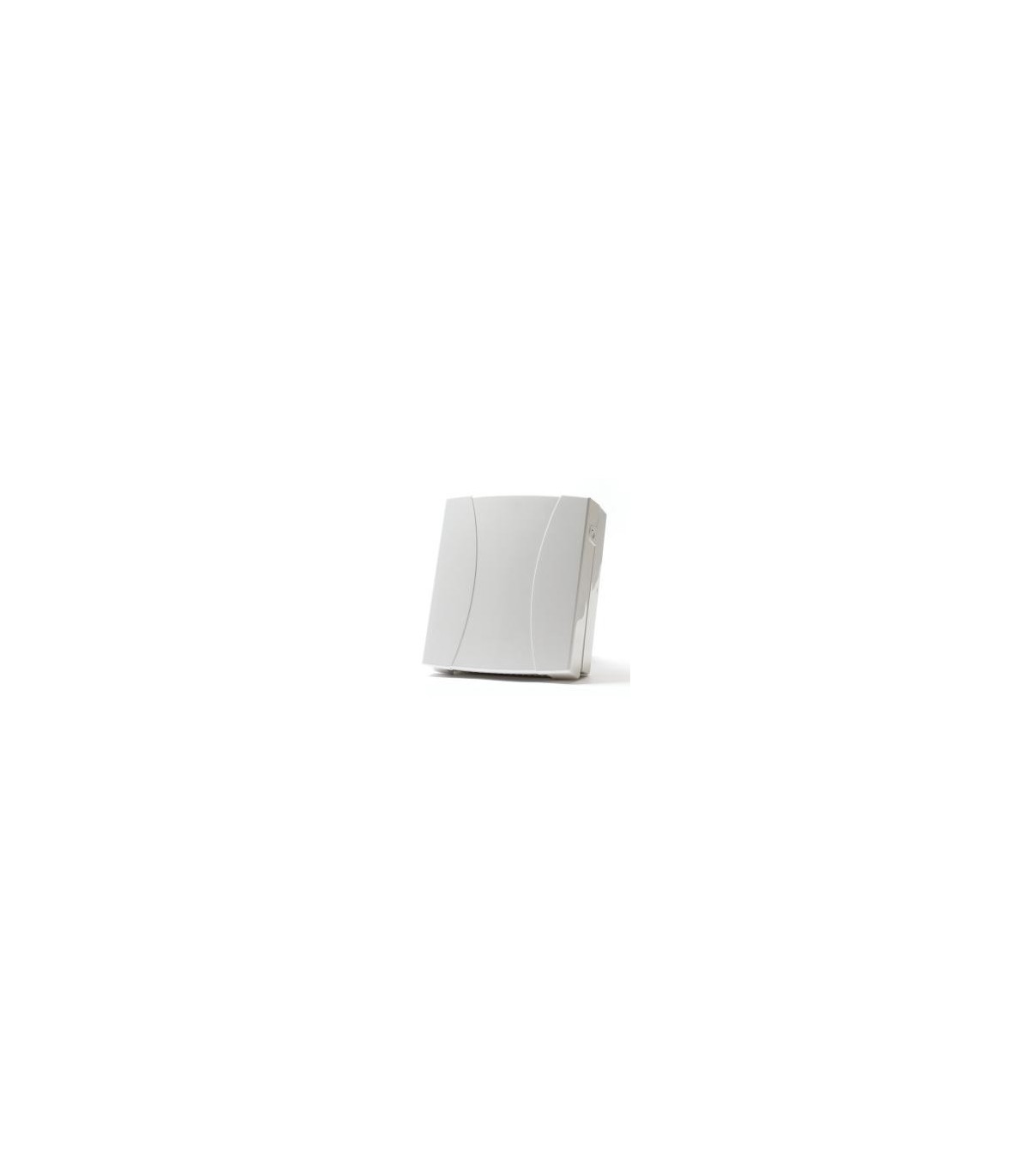

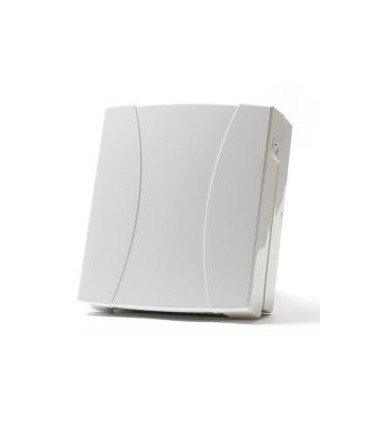

2 Way expansion module for 8 zones EL4770
- Model: EL-4770
- Bi-directional wireless communication
- 8 zone inputs (NO, NC, EOL, DEOL)
- Up to 2 per system, meaning up to 16 wired zones + 2 on the iConnect 2-Way main board
- 2 auxiliary parallel outputs 12 volts@1000mA per expander
- PGM-Programmable Outputs: Dry contact, 1A@30VDC,0.5A@25VDC
- Fully supervised
- Dual tamper protection (Box & Wall)
- Stand alone with local power (no need to run wires to the panel)
- Includes a polycarbonate box and a 14.4v/1.5A power supply
- Optional back-up battery 12V/7AH
- Frequency: 868 MHz
Includes power supply
Do not includes battery
